Welded Wire Mesh Steel Greenhouse Rolling Benches

Welded wire mesh steel greenhouse rolling bench is composed of seedbed net, rolling shaft, bracket, aluminum alloy frame, hand wheel, cross support and diagonal tie rod. It is easy to use and inexpensive, and is widely used in film greenhouses and glass greenhouses. As a rich experience supplier in China, we have exported the rolling benches to many foreign countries, if you want to buy, with pleasure to recommend to you.

Greenhouse welded mesh rolling bench is designed to save labor, increase greenhouse service efficiency and prolong its service life. Our rolling benches are designed for in-ground installation and used for saving space in high production process. Overall, it offers superior strength and longevity.

The standard size of movable wire mesh seedbed is 2.5m×1.65m×0.75m(L×W×H), and customization is also acceptable according to your requirements.


Generally the aperture of movable seedbed is 130 mm × 30 mm (L × W), and the position of seedbed could be fine-tuned by hand-wheel.

The advantages of greenhouse rolling bench

1. Manual drive, ease operation and movement. High quality aluminum alloy frame. The surface treatment of steel pipes, bracket and seedbed networks is hot dip galvanizing, which particularly suitable for hot and humid environment greenhouse.

2. The range of trimming is 30cm, which can make the utilization of greenhouse area upon 80%.

3. Anti-tilt device prevent the inclination problem caused by the plants weight.

Parameter (Specification)

product name

greenhouse wire mesh rolling bench

wire diameter

3.0mm*3.0mm

3.2mm*3.5mm

4.0mm*3.0mm

mesh size

120mm*25mm

130mm*30mm

125mm*50mm

50mm*50mm

height

0.6m,can be change between 0.6-0.65m

width

2.5m max,can be customized

length

30m max,can be customized

Product Application

We are specialized in the supply of greenhouse welded mesh rolling bench, mainly used in greenhouse flower cultivation, vegetable seedling, rice seedling, Chinese herb seedling, etc., which is one of the equipment that can not be missing in modern agriculture. The pot tray is placed on the mobile seedling bed, the seeds are placed in the pot tray, and the seedlings can be raised and planted after controlling the temperature and humidity of the greenhouse. The seedbed is about 0.7 meters from the ground, and the ventilation effect is good, which also reduces the occurrence of diseases and pests.

Product Details

Jiangsu Spring Agri Equipment Co.,Ltd. ,founded in 2010, with a registered capital of RMB 11 million . We have about 15 years of greenhouse design, production, installation and service experiences, specialize in film greenhouse, glass greenhouse, PC greenhouse and greenhouse system, greenhouse equipment. AS a professional greenhouse manufacture in China,we supply greenhouse products to the global market with good quality and competitive price,welcome to buy the welded wire mesh steel greenhouse rolling bench from us, we also can do OEM order.

Below you can see some export products details.

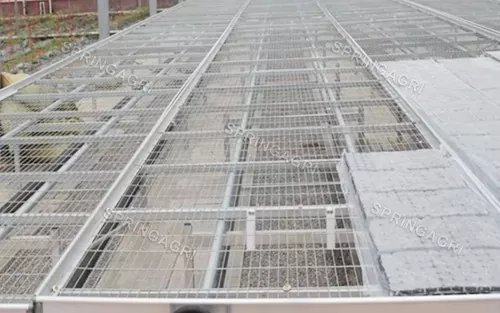

Wire mesh

wire mesh hot dip galvanized seedbed networks,it's par ticularly suitable for hot and humid environment greenhouse

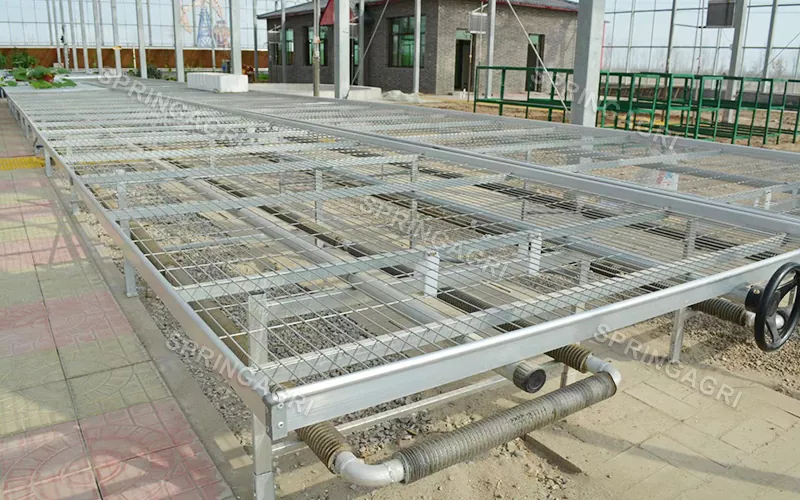

Hand wheel

Through vertical arrangement as a unit combination, can form a grand and orderly wall, inject vitality into the building facade, but also in line with the visual experience of traditional architecture


Hereby some FAQ

1、What products do you specialize in?

We are in a wide scope of greenhouse engineering、greenhouse supporting system,  greenhouse accessories,and also greenhouse turnkey project.


2、Are you a trading company or a manufacturer?

We have our own factory,it is a professional greenhouse manufacture.


3、What are your hot-selling products?

Our currently hot products are plastic film greenhouse, glass greenhouse, PC sheet greenhouse, and greenhouse accessories,etc. If you want to get the details, please consult our sales.


4、How long is your delivery time?

Generally speaking,7days from stock,and it takes 20-60 days for production.


5、How about the guarantee period?

Generally speaking,about 3 years.
