TOP GREENHOUSE provides professional intelligent seedling glass greenhouse, using sensors to monitor air temperature and humidity, light intensity, soil temperature and humidity, moisture, carbon dioxide concentration and other environmental parameters. Through the Internet of Things, big data, 4G network, managers can use smart phones, computers to view and analyze data, realize remote control of wet curtain fan, spray drip irrigation, internal and external shading, heating and light, etc., to ensure that the seedling greenhouse environment is suitable for crop growth.、
The temperature and humidity sensor can be placed to monitor the temperature and humidity in real time. When the temperature is lower than the standard value, the system automatically turns on the temperature control device to adjust the temperature. When the temperature reaches the standard value, the system automatically turns off.
Soil moisture sensor is used to monitor soil moisture and control irrigation, and soil nitrogen, phosphorus and potassium sensor is used to monitor nutrients and control fertilization. With real-time data support, it is possible to minimize irrigation water and fertilizers. According to statistics, fertilizer and irrigation water can be reduced by more than 50%-60%.
Through the intelligent greenhouse management cloud platform, managers can monitor, manage, view and receive alarm information in real time, regardless of time and place.

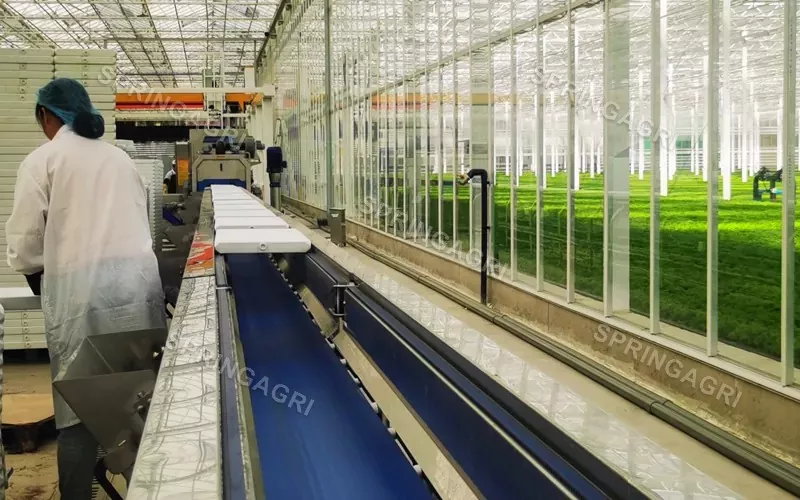

Suitable for factory seedling greenhouse, providing a stable growing environment and sufficient nutrients, factory seedling cultivation can save seedling time and cost, while improving seedling efficiency and yield.
The system has intelligent management function, which can automatically adjust environmental parameters, reduce manual intervention and reduce labor cost. At the same time, through data analysis, it can optimize the allocation of water, electricity consumption, irrigation and other resources to reduce energy consumption and costs
By collecting and analyzing environmental parameter data in greenhouses, it can provide detailed data support for scientific research experiments and better understand crop growth
|
Parameters And Specifications |
||||
|---|---|---|---|---|
|
Dimension Parameter |
Load Parameter |
|||
|
Span Length |
8m、9.6m、12m |
Wind Load |
40-120km/h |
|
|
Bay Length |
4m、4.5m、5m |
Snow Load |
0-100cm |
|
|
Top Height |
6m-9m |
Hanging Load |
0-15Kg/M² |
|
|
Shoulder Height |
4-7m |
Maximum Drainage Capacity |
140mm/h |
|
|

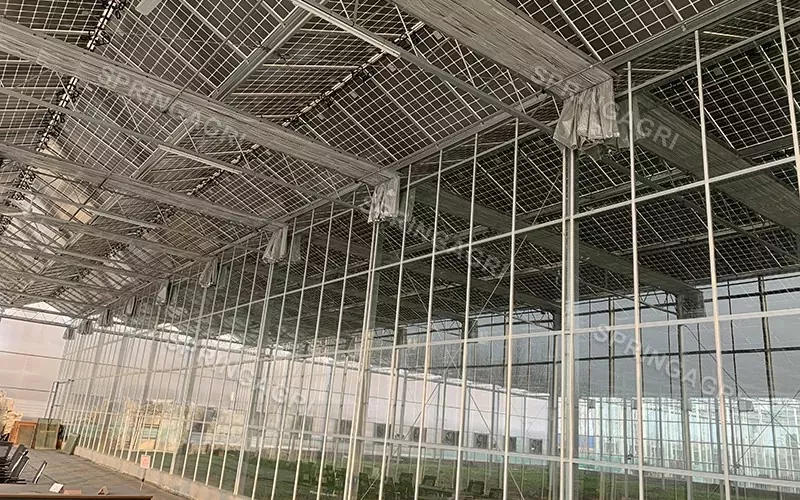

Skeleton Frame |
Covering Materials |
|||
|
Hot Dip Galvanized Steel Tubes |
RGlass 5+6A+5mmhollow glass, non-reflecting glass 4mm |
|||
|
Optional Systems |
Ventilation System、Shading System、Irrigation System、Cooling System、Heating System、Lighting System、Seedbed System、Control System、OtherCustomized Equipment |
|||
|
Applications |
The seeding ofVegetables, fruits, flowers and other crops |
|||
|
Marks |
The above parametersjustfor reference and subject to actual projects. |
|||

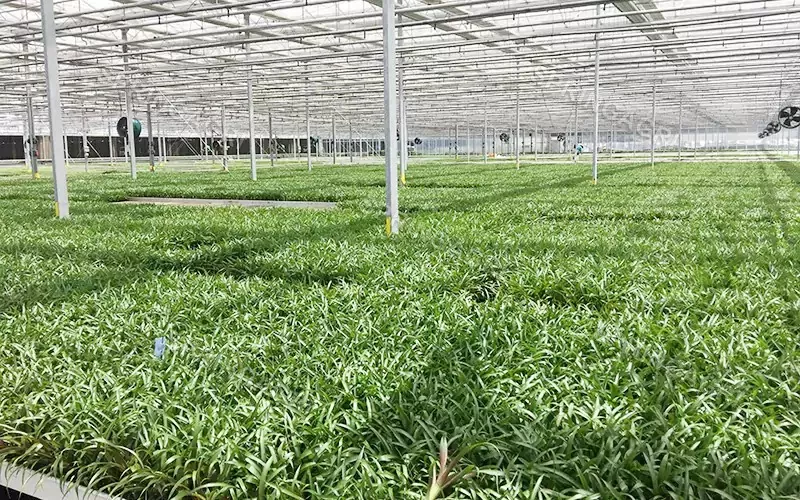

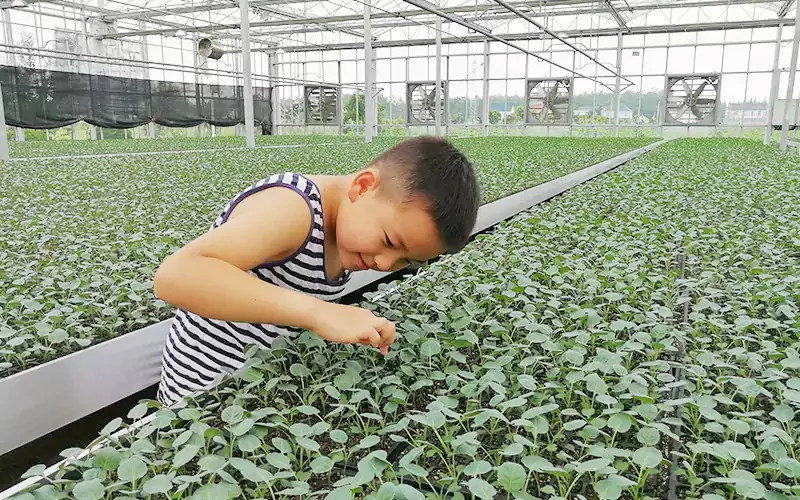

Intelligent seedling glass greenhouse has been widely used in vegetables, fruits, flowers and other crops seedling and growth process, in vegetable production, the application of seedling greenhouse can make spring earlier, improve the survival rate of seeds and quality of life, accelerate the growth rate. At the same time, it also has a good effect on preventing diseases and pests. In fruit tree production, seedling greenhouse can improve the survival rate of saplings, shorten the growth time, so as to greatly improve the yield and quality of fruit trees.
